Wireless in Ear Monitor System 5 Receivers Audio UHF Transmitter
- Description
- Additional information
- Reviews (0)
Description
- wireless in ear monitor system 2 channel 80 frequencies can be preset,easy to setup. Strong signal, New FCC frequency
- METAL receivers and Transmitter UHF wireless ear-in monitoring system band Phase lock PLL
- Good for Stage performance and speaker built-in limiter circuit eliminate distortion at excessive input level. The front panel 1/4 inch stereo monitor has headphone jacks for use on the stage, which can replace the traditional sophisticated sound monitoring equipment to achieve an admirable monitoring effect.
- Design features- elegant LCD and LCD display, low battery power indicator lamp on receiver. With power supply and radio frequency receiving indicator lamp. With two AA batteries and high efficiency power supply circuit, it has long service life and durable metal shell. Wireless Range and Frequency Range – MK2050 Input Ear Monitoring and Receiving System provides desktop-level monitoring. The wireless range can reach 300 feet with set up antenna
- our company warranty department in IL and NY,offer 30 days return with no reason 3 year free warranty After-sale service

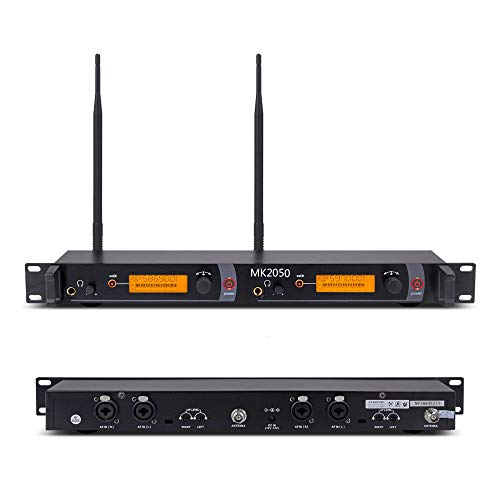

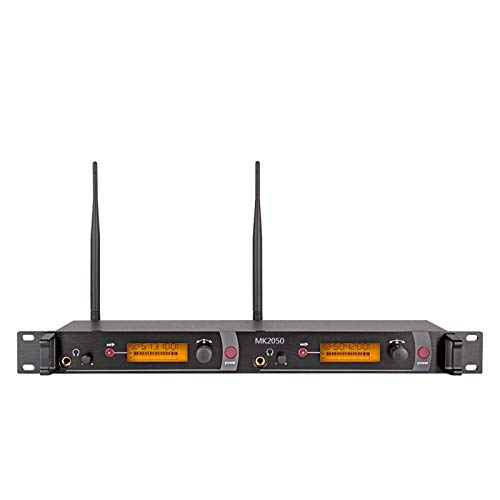

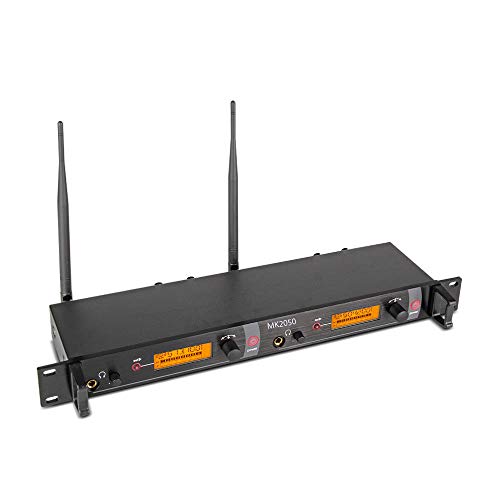

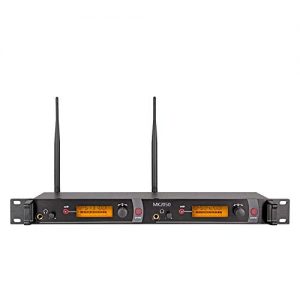

Wireless In Ear Monitor System
FCC Frequency : 572 Mhz — 603.5Mhz
Main Features
UHF band phase lock PLL
Among the band of 32MHz, the preset 40 frequencies can be arbitrary switching
Dynamic expansion circuit, greatly improve signal-to-noise ratio
Elegant liquid crystal display panel
With using two AA batteries and efficient power circuit, long service time
Metal housing, sturdy and durable
The transmitter adopts balanced and unbalanced sharing socket
Transmitter:
Case specification: standard 1U
Case material: metal panel
Oscillation mode: PLL synthesized
Frequency stability: ±0.005%
Frequency range: UHF572-603.5MHz
Frequency interval: 32MHz
Preset Channel: 40 channel separately set 4 groups
Operate mode: manual adjust
Max Deviation: ±48KHz
Frequency response: 50Hz~15KHz±3dB
Transmit output power: 100mW(50Ω)
Harmonic radiation:
AF input: XLR, φ6.35mm jack
Earphone load impedance: ≥16Ω
Current consumption: DC 12V/250mA
Antenna socket: TNC socket(50Ω) fixed 1/2λReceiver:
Operate mode: manual adjust
Receiving mode: single tuning
Sensitivity: deviation 25KHz, with connecting 7dBuV, S/N>78dB
Comprehensive S/N ratio: >94dB(1KHz-A)
Comprehensive T.H.D:
Earphone load impedance: ≥16Ω
Volume output adjusts: adjust when using
Use batteries AA X2
Current drain: 3V/120mA(Under the median degrees of the volume control)

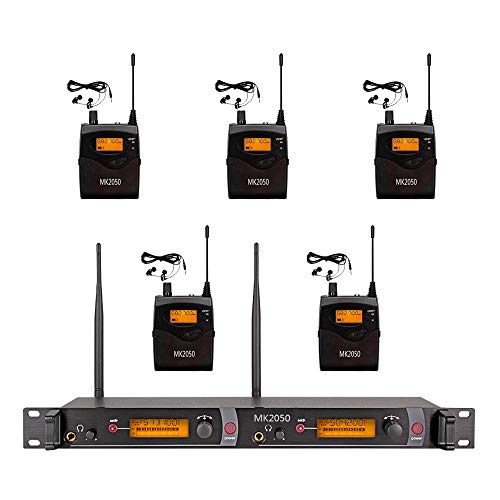

Package Include:
Transmitter × 1
Bodypack receiver × 5
Antenna × 2
Earphone × 5
Cable Line × 4
Power Adapter × 1
User Manual × 1
Wireless in Ear Monitor System 5 Receivers Audio UHF MK2050 Transmitter with 80 Channel Monitoring Recording Studio Stage Pro Audio Musical 572-603 MHz Two Year Free Warranty.
Additional information
| Weight | 7 oz |
|---|---|
| Dimensions | 21.75 × 12 × 3.5 in |
| Binding | Electronics |
| Brand | WENWEN |
| EAN | 8581701093727 |
| Manufacturer | WENWEN |
| Publisher | WENWEN |
| Studio | WENWEN |
