UHF Wireless in Ear Monitor System Pro Audio Professional Monitoring
- Description
- Additional information
- Reviews (0)
Description
- wireless in ear monitor system 1 channel 40 frequencies can be preset,easy to setup. Strong signal, New FCC frequency METAL receivers and Transmitter UHF wireless ear-in monitoring system band Phase lock PLL
- 300Ft receiving distance,Good for Stage performance and speaker built-in limiter circuit eliminate distortion at excessive input level. The front panel 1/4 inch stereo monitor has headphone jacks for use on the stage, which can replace the traditional
- You will be shocked in bass and comforted in pitch with this in-ear monitor. It replaces the traditional composite audio monitoring equipment, let you experience different auditory effects. New battery compartment design and elegant LCD display make the receiver more convenient to use. Use scenes widely, stage, band, singer use.
- (MULTI-DISTRIBUTION& STRONG COMPATIBILITY): The transmitter can be used to multiple sets of receivers at the same time, unlimited connections. In different frequency environments, it can be used simultaneously with wireless microphone, mixer and home stereo system.
- our company warranty department in IL and NY,offer 3 year free warranty After-sale service
Wireless In Ear Monitor System
3 Years Free Warranty After-Sale Service
FCC Frequency : 572 Mhz — 603.5Mhz
Main Features
UHF band phase lock PLL
Among the band of 32MHz, the preset 40 frequencies can be arbitrary switching
Dynamic expansion circuit, greatly improve signal-to-noise ratio
Elegant liquid crystal display panel
With using two AA batteries and efficient power circuit, long service time
Metal housing, sturdy and durable
The transmitter adopts balanced and unbalanced sharing socket

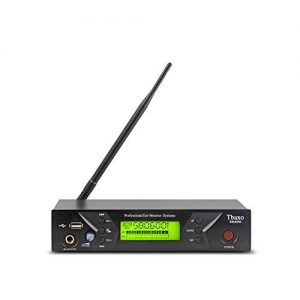

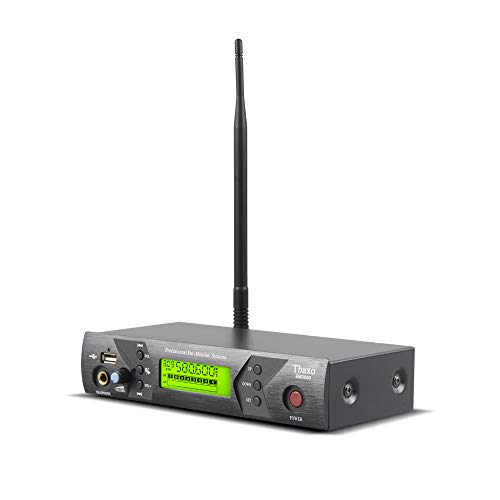

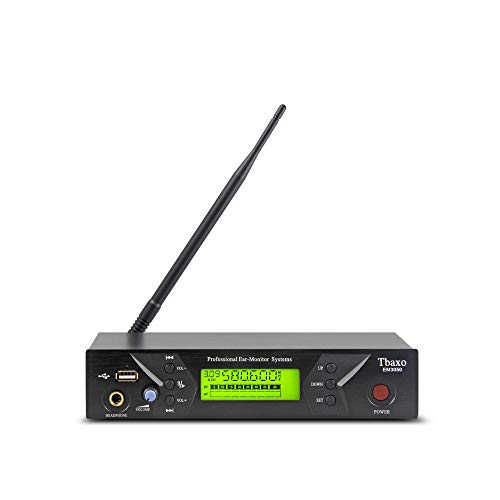

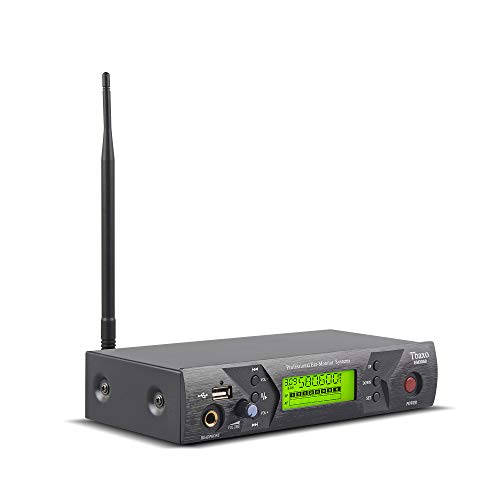

Transmitter:
Case specification: standard 1U
Case material: metal panel
Oscillation mode: PLL synthesized
Frequency stability: ±0.005%
Frequency range: UHF572-603.5MHz
Frequency interval: 32MHz
Preset Channel: 40 channel separately set 1 group
Operate mode: manual adjust
Max Deviation: ±48KHz
Frequency response: 50Hz~15KHz±3dB
Transmit output power: 100mW(50Ω)
Harmonic radiation:
AF input: XLR, φ6.35mm jack
Earphone load impedance: ≥16Ω
Current consumption: DC 12V/250mA
Antenna socket: TNC socket(50Ω) fixed 1/2λReceiver:
Operate mode: manual adjust
Receiving mode: single tuning
Sensitivity: deviation 25KHz, with connecting 7dBuV, S/N>78dB
Comprehensive S/N ratio: >94dB(1KHz-A)
Comprehensive T.H.D:
Earphone load impedance: ≥16Ω
Volume output adjusts: adjust when using
Use batteries AA X2
Current drain: 3V/120mA(Under the median degrees of the volume control)

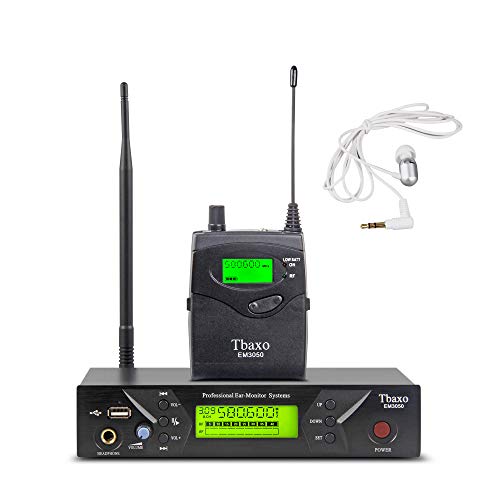

Package Include:
Transmitter × 1
Bodypack receiver × 1
Antenna × 2
Earphone × 1
Cable Line × 2
Power Adapter × 1
User Manual × 1
UHF Wireless in Ear Monitor System Pro Audio Professional Monitoring SR2050 Type 1 Channel 40 Frequency with 1 Receiver 1 Headphone for Singing Stage & Studio Recording 3 Years Free Warranty Service 5.
Additional information
| Weight | 3.52 oz |
|---|---|
| Dimensions | 15.94 × 12.2 × 3.82 in |
| Binding | Electronics |
| Brand | tbaxo |
| EAN | 0781827588406 |
| Manufacturer | tbaxo |
| Publisher | tbaxo |
| Studio | tbaxo |
| UPC | 781827588406 |
