Synthrotek Analog Drum Synth Eurorack Module Kit

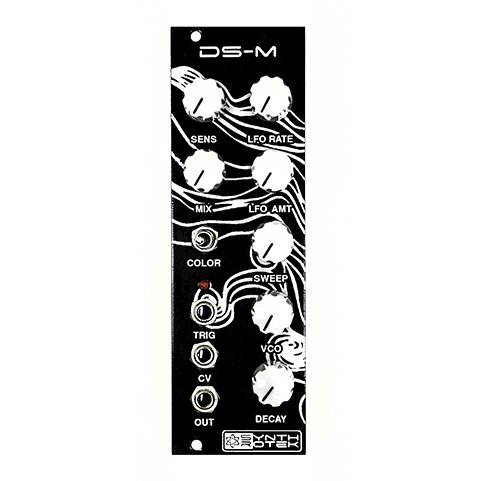

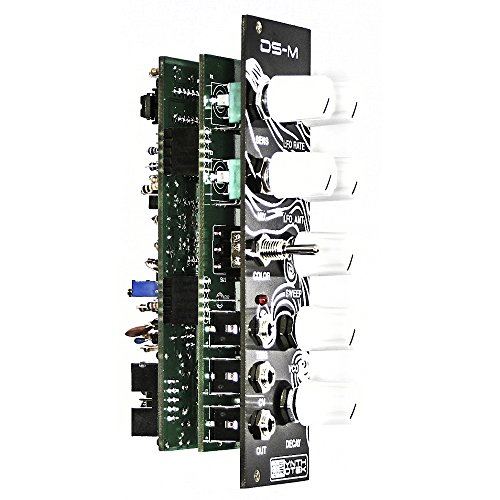

The DS-M is a full featured drum synth that can emulate virtually any drum sound! The DS-M (Drum Synth Module) is a complex, modifiable, 100% analog drum synth loosely based on the Coron DS-8 and neatly packaged into an 8hp module. Changes to the original DS-8 include: VCA-like trigger input (more voltage = louder output) Trimmer-adjustable attack LED trigger indicator 1v/o tracking (C0-C4) Triangle core oscillator Additional noise color switch setting (3 settings instead of 2) More distinct noise timbres Louder, improved noise circuit Really LOW bass frequencies Total range ~4Hz to 2.6kHz In addition to being a highly versatile analog drum synth, this unit is also a fully functional monophonic synth that has these features: 1v/o tracking (C0-C4) Adjustable attack and decay envelope over the VCA Built-in LFO circuit Sweep circuit Noise circuit Plug your control voltage and gate directly out of your midi-to-CV converter or connect your QuNexus keyboard, Arturia keyboard, or sequencer, and you’re ready to make some music! Note: Complete units come pre-calibrated (according to the Synthrotek Deluxe Power Supply System). If you are building a kit or have a different power supply system, you will need to calibrate the 1v/o tracking using the DS-M calibration guide. Width: 8hp Depth: 1.75″ (44mm) Power connection: 10 Pin Keyed Eurorack Current Draw: +12V: 20mA, -12V: 10mA (5V not used)
