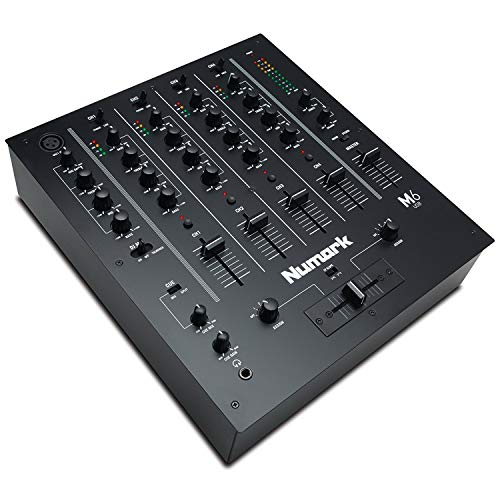

Numark M6 USB | 4-Channel DJ Mixer with On-Board Audio Interface
- Description
- Additional information
- Reviews (0)
Description
- Versatile, Feature Packed – Four-channel DJ scratch mixer featuring must-have mix essentials for any DJ setting from weddings to clubs, parties to practice setups
- Connectivity Covered – Multiple phono, line and mic inputs, plus master (RCA), record (RCA), booth (RCA) and headphone (1/4-inch stereo) outputs
- Mix Control – Four channels outfitted with a replaceable crossfader, dedicated channel level faders plus slope controls
- The Perfect Mix – Three-band EQs on each channel and dedicated cue controls
- Made-To-Move, Style Driven Design – Sleek, robust and ultra-portable design with radiant LED monitoring facilities included
Numark’s M6 enables you to step up to a four-channel mixer. This club-style design not only works with any standard audio sources including turntables and CD players, but it also has a USB computer connection. When connected to your Mac or PC, the plug-and-play connection empowers you to mix in audio in from music-player software and record your sets into virtually any audio recording application.
You will enjoy a complete range of performance essentials in M6, including three-band EQ and LED metering per channel. M6 has a replaceable crossfader with slope control, and you can assign any channel to either side of the crossfader.
You can talk over the mix with M6’s dedicated XLR microphone channel and a secondary mic input on channel four. And for the best possible sound, M6 has balanced outputs.
Get all the flexibility of a four-channel mixer plus the power of computer connection with M6.
Technical Specs
- INPUTS
- Line
- 10 kΩ input impedance
- 77 mV rms sensitivity for 1.22 V output
- Mic
- 600 Ω input impedance unbalanced
- 1.1 mv rms sensitivity for 1.22 V output
- 60 mV rms max input
- Phono
- 47 kΩ input impedance
- 1.3 mV rms sensitivity @1 kHz for 1.22V output
- Line
- OUTPUTS
- Line: 6.7 V rms max
Headphone: 0.5 W into 47 Ω
- Line: 6.7 V rms max
- DISTORTION:
- SIGNAL-TO-NOISE RATIO (maximum output, JIS-A weighted):
- Line: > 96 dB
- Mic: > 94 dB
- Phono: > 79 dB
- FREQUENCY RESPONSE
- Line: 20 Hz – 20,000 Hz (± 0.5 dB)
- Mic: 20Hz – 15,000 Hz (± 0.5 dB)
- Phono: ±1 dB (except for controlled attenuation of -3dB @ 20Hz to reduce rumble and feedback)
- MICROPHONE TALKOVER: -15 dB
- CHANNEL EQUALIZER
- Bass: +12/-32 dB @ 60 Hz
- Middle: +12/-32 dB @ 1,200 Hz
- Treble: +10/-28 dB @ 15,000 Hz
- DJ MIC EQUALIZER
- Bass: ±12 dB @ 100 Hz
- Middle: ±10 dB @ 1,200 Hz
- Treble: +12 dB @ 15,000 Hz
- POWER CONSUMPTION
- 9.1 W typical
- 11.6 W with full headphone output
- DIMENSIONS (width x depth x height): 12.625” x 14.25” x 4”
- WEIGHT: 9.6 lbs
Box Contents
- M6 USB
- Power cable
- USB cable
- Quickstart Guide
- Safety & Warranty Information Booklet
Numark M6 USB | 4-Channel DJ Mixer with On-Board Audio Interface, 3-Band EQ, Club-Ready Inputs, Microphone Input and Replaceable Crossfader with Slope Control.
Additional information
| Weight | 11.95 oz |
|---|---|
| Dimensions | 19 × 16.3 × 7 in |
| Binding | Electronics |
| Brand | Numark |
| Color | SilverBlack |
| EAN | 0133527468838 |
| IsAutographed | 0 |
| IsMemorabilia | 0 |
| Manufacturer | Numark |
| Model | M6 USB |
| MPN | M6 USB |
| NumberOfItems | 1 |
| PartNumber | M6 USB |
| Platform | Mac OS X |
| PublicationDate | 2010-10-01 |
| Publisher | Numark |
| ReleaseDate | 2010-11-15 |
| Size | 4-channel + USB |
| Studio | Numark |
| UPC | 676762164115 |
| Warranty | 1 year parts and labor. |
