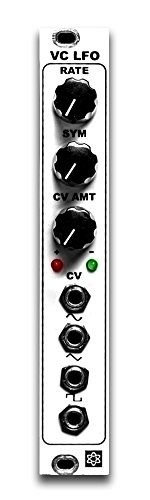

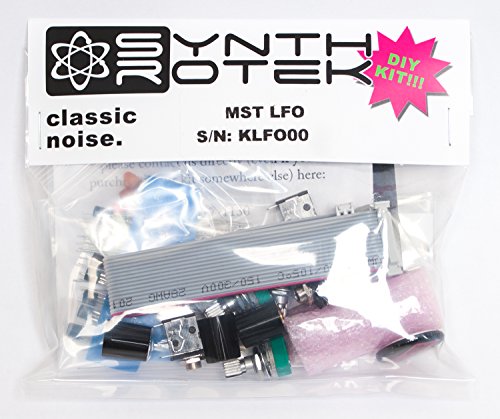

MST VC LFO DIY Kit

MST Voltage Controlled Low Frequency Oscillator is another tiny, useful module packed to the gills with features. Manual and CV control over rate with 3 discrete waveform outputs. A square wave can be used to clock modules such as our Noise, Sample & Hold module. Great for creating vibrato, tremolo or other classic modulation techniques. Great for frequency modulation, especially when connected to the MST analog VCO. Features: Voltage Control rate input with attenuator control Manual rate control Slew/Symmetry control Positive and negative LED indicators Square, triangle and sine wave outputs Specifications: Manual range: Approx 51 Second to Approx 102 Hz Time with Max range, +5V CV: 1,450Hz Time with Max range, -5V CV: 1 Hz Time with Min range, +5V CV: 2 Hz Time with Min range, -5V CV: 1.5 Hours Skew range, all waveforms: 14% to 86% Current draw: V+ max 11.75mA, V- max 12.2mA Width: 4HP, Depth: 4.77 cm (1.88 in)
